Zurück zur Produktübersicht DatenblattWFK EX (explosion-proofed) – Fixed louvres

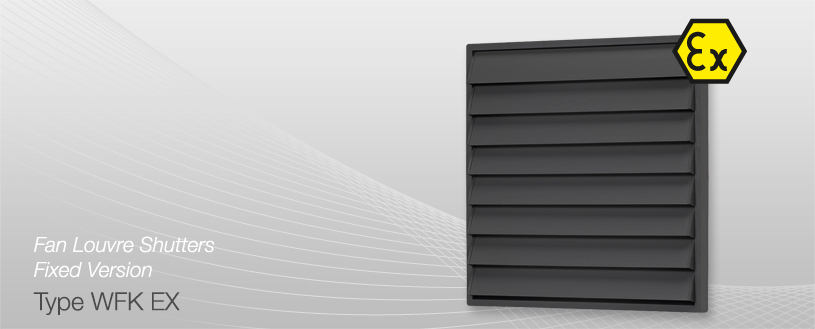

Type WFK EX (explosion-proofed)
- Explosion-proofed fan louvre shutter to be used in connection with an equipment that fulfills the ATEX guide-line 94/9/EG
- Blades are connected to the frame
- Outdoor weathering resistant (UV-stabilized)
- Suitable for an operating temperature range of -30°C to +60°C
- Opening angle 20°
- Specific design guarantees high durability
- Manufactured of high standard ecologically friendly plastic
- The shutter has to be installed by experts and has to be earthed acc. to VDE-guide-lines
- Proofed according IEC 93/VDE 0303 part 30 and admitted for the following explosion-endangered areas (according to EXAM 1100/101/06 BVS-BI):
• Gas or solvent vapour / air mixtures: zone 1 and zone 2
• Dust- / air mixtures: zone 21 and zone 22 - Possible applications: accumulator stations, food and allied industries, textile factories, production, crushing and installation factories in explosion-endangered areas
- Number of blades varies according to the size of the shutter
- Each louvre shutter is individually carton-packed incl. a set of fastening parts (hole size 5 mm)
- Available as special fabrication (WFK-S EX) in all sizes

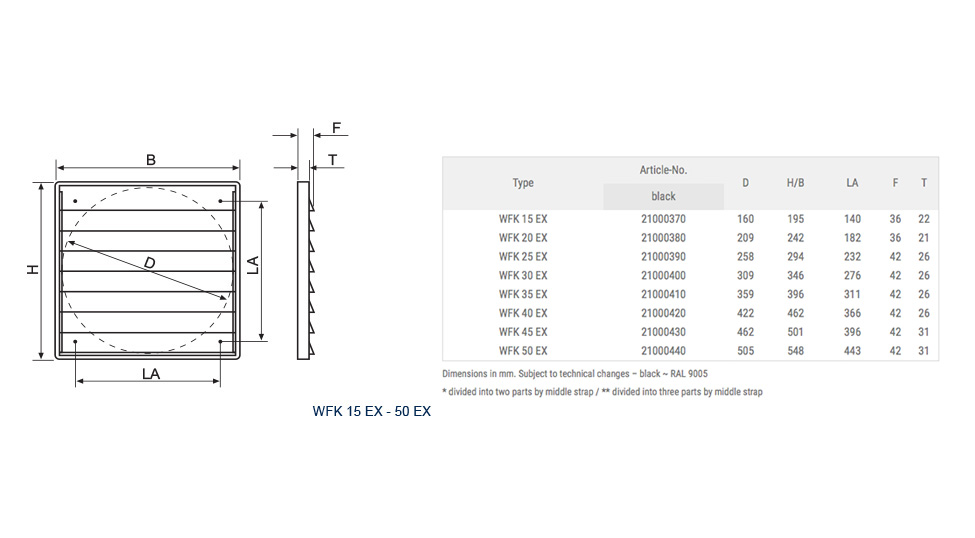

| Type | Article-No. | D | H/B | LA | F | T | Free cross-section (cm²) |
|---|---|---|---|---|---|---|---|
| black | |||||||
| WFK 15 EX | 21000370 | 160 | 195 | 140 | 36 | 22 | 196 |
| WFK 20 EX | 21000380 | 209 | 242 | 182 | 36 | 21 | 336 |
| WFK 25 EX | 21000390 | 258 | 294 | 232 | 42 | 26 | 507 |
| WFK 30 EX | 21000400 | 309 | 346 | 276 | 42 | 26 | 732 |
| WFK 35 EX | 21000410 | 359 | 396 | 311 | 42 | 26 | 987 |
| WFK 40 EX | 21000420 | 422 | 462 | 366 | 42 | 26 | 1356 |
| WFK 45 EX | 21000430 | 462 | 501 | 396 | 42 | 31 | 1626 |
| WFK 50 EX | 21000440 | 505 | 548 | 443 | 42 | 31 | 1942 |
| WFK 55 EX* | 21000450 | – | 604 | 522 | 44 | 28 | 3019 |
| WFK 65 EX* | 21000460 | – | 696 | 628 | 44 | 31 | 3969 |
| WFK 70 EX** | 21000620 | – | 740 | 672 | 40 | 40 | 4586 |
| WFK 71 EX** | 21000630 | – | 760 | 692 | 40 | 40 | 4859 |
| WFK 75 EX** | 21000635 | – | 790 | 722 | 40 | 40 | 5213 |
| WFK 80 EX** | 21000640 | – | 840 | 772 | 40 | 40 | 6031 |
| WFK 85 EX** | 21000650 | – | 890 | 822 | 40 | 40 | 6581 |
| WFK 90 EX*** | 21000660 | – | 940 | 872 | 40 | 40 | 6926 |
| WFK 95 EX*** | 21000670 | – | 990 | 922 | 40 | 40 | 8235 |
| WFK 100 EX*** | 21000680 | – | 1040 | 972 | 40 | 40 | 9171 |
| WFK 110 EX*** | 21000690 | – | 1140 | 1072 | 40 | 40 | 11159 |
Dimensions in mm. Subject to technical changes – black ~ RAL 9005
* with middle strap / ** divided into two parts / *** divided into three parts
