Type WSKL
- Plastic fan louvre shutter for exhaust ventilation
- Self-adjusting blades
- Outdoor weathering resistant (UV-stabilized)
- Suitable for an operating temperature range of -30° C to +60° C
- Maximum flow velocity 20 m/s
- Opening angle 85°
- Specific design guarantees high durability
- Manufactured of high standard ecologically friendly plastic
- Number of blades varies according to the size of the shutter

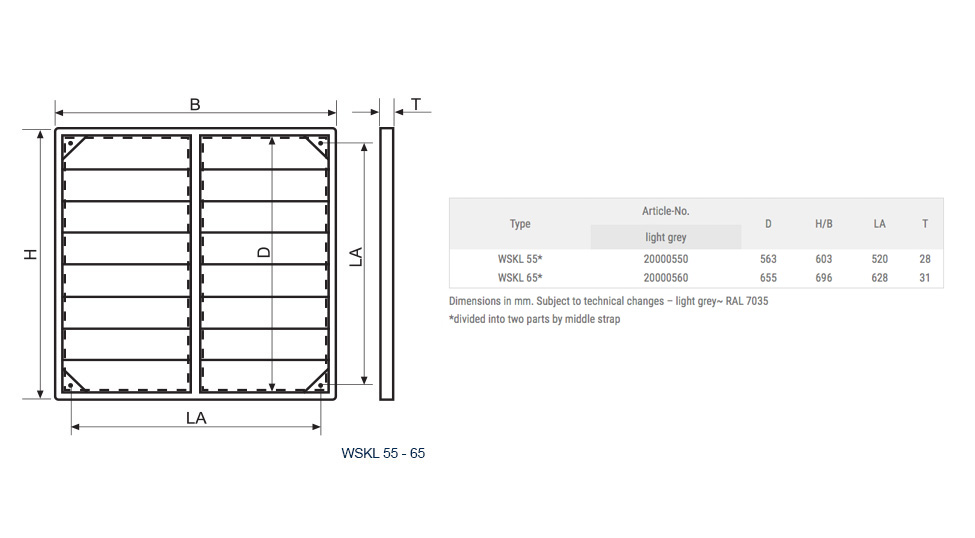

- WSKL 55 – 65 divided by a middle strap
- Each louvre shutter is individually carton-packed incl. a set of fastening parts (hole size 5mm)

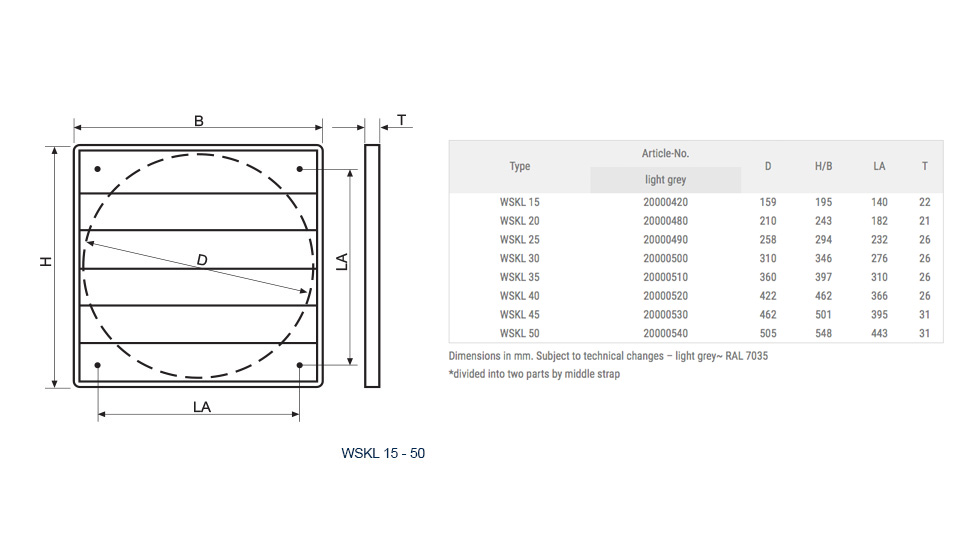

| Type | Article-No. | D | H/B | LA | T | Free cross-section (cm²) |
|---|---|---|---|---|---|---|
| light grey | ||||||
| WSKL 15 | 20000420 | 159 | 195 | 140 | 22 | 196 |
| WSKL 20 | 20000480 | 210 | 243 | 182 | 21 | 336 |
| WSKL 25 | 20000490 | 258 | 294 | 232 | 26 | 507 |
| WSKL 30 | 20000500 | 310 | 346 | 276 | 26 | 732 |
| WSKL 35 | 20000510 | 360 | 397 | 310 | 26 | 987 |
| WSKL 40 | 20000520 | 422 | 462 | 366 | 26 | 1356 |
| WSKL 45 | 20000530 | 462 | 501 | 395 | 31 | 1626 |
| WSKL 50 | 20000540 | 505 | 548 | 443 | 31 | 1942 |
| WSKL 55* | 20000550 | 563 | 603 | 520 | 28 | 3019 |
| WSKL 65* | 20000560 | 655 | 696 | 628 | 31 | 3969 |
Dimensions in mm. Subject to technical changes – light grey~ RAL 7035
*with middle strap
