AG-S

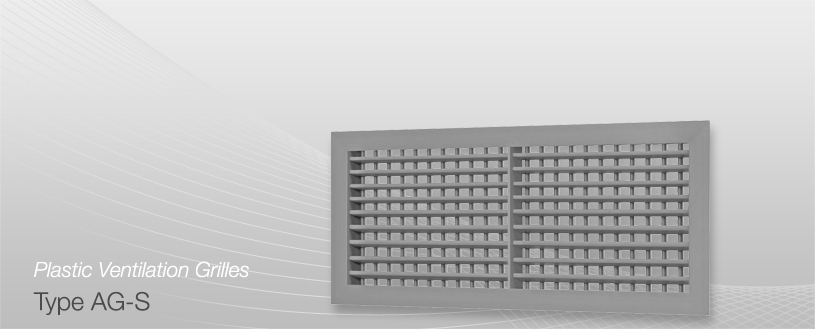

Type AG-S

• Plastic ventilation grille for supply and exhaust air
• Fixed, horizontal, manually adjustable blades with additional vertical air-intake blades
• Outdoor weathering resistant (UV-stabilized)
• Suitable for an operating temperature range of -30° C to +60° C
• Specific design guarantees high durability
• The grille has to be installed deepened into the cladding on the facade of the masonry
• Manufactured of high standard ecologically friendly plastic
• Number of blades varies according to the size of the grille
• Production according to your requested dimensions; please indicate the exact fitting dimensions

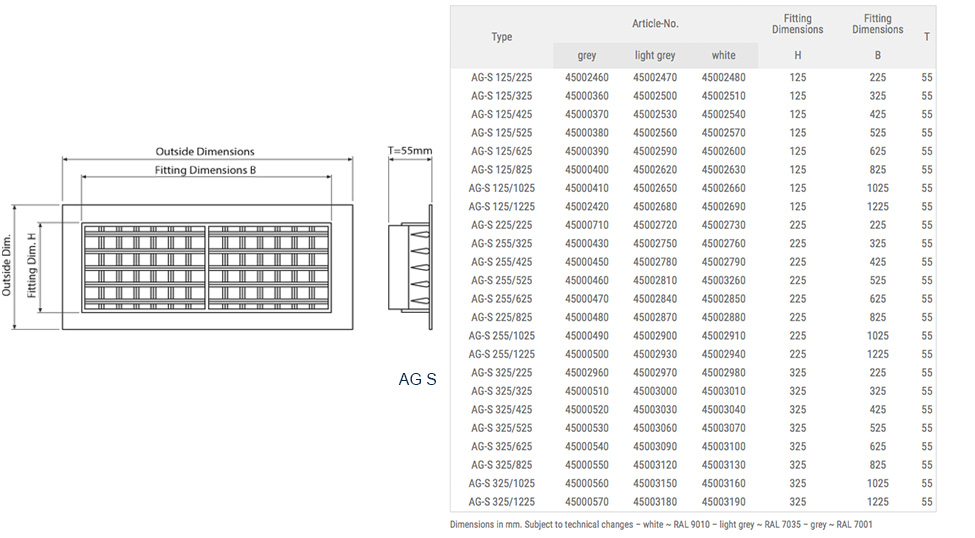

Product picsDrawings

Type	Article-No.	Fitting Dimensions	Fitting Dimensions	T	Free cross-section (cm²)
	light grey	H	B
AG-S 125/225	45002470	125	225	55	239
AG-S 125/325	45002500	125	325	55	345
AG-S 125/425	45002530	125	425	55	451
AG-S 125/525	45002560	125	525	55	557
AG-S 125/625	45002590	125	625	55	664
AG-S 125/825	45002620	125	825	55	876
AG-S 125/1025	45002650	125	1025	55	1089
AG-S 125/1225	45002680	125	1225	55	1301
AG-S 225/225	45002720	225	225	55	430
AG-S 255/325	45002750	225	325	55	621
AG-S 255/425	45002780	225	425	55	812
AG-S 255/525	45002810	225	525	55	1004
AG-S 255/625	45002840	225	625	55	1195
AG-S 225/825	45002870	225	825	55	1577
AG-S 255/1025	45002900	225	1025	55	1960
AG-S 255/1225	45002930	225	1225	55	2342
AG-S 325/225	45002970	325	225	55	621
AG-S 325/325	45003000	325	325	55	897
AG-S 325/425	45003030	325	425	55	1174
AG-S 325/525	45003060	325	525	55	1450
AG-S 325/625	45003090	325	625	55	1726
AG-S 325/825	45003120	325	825	55	2279
AG-S 325/1025	45003150	325	1025	55	2831
AG-S 325/1225	45003180	325	1225	55	3384

Dimensions in mm. Subject to technical changes – light grey ~ RAL 7035
