Plastic Grille / Type LG
- Air grille for inside and outside use
- Outdoor weathering resistant (UV-stabilized)
- Suitable for an operating temperature range of -30° C to +60° C
- Opening angle 50°
- Specific design guarantees high durability
- Manufactured of high standard ecologically friendly plastic
- Cross-axing roll adjustment prevents penetration of rain water
- Wall or ceiling fixing possible due to integrated bore holes (4mm)
- On request your company´s name will appear in the middle of the grille (amount > 500 pieces)

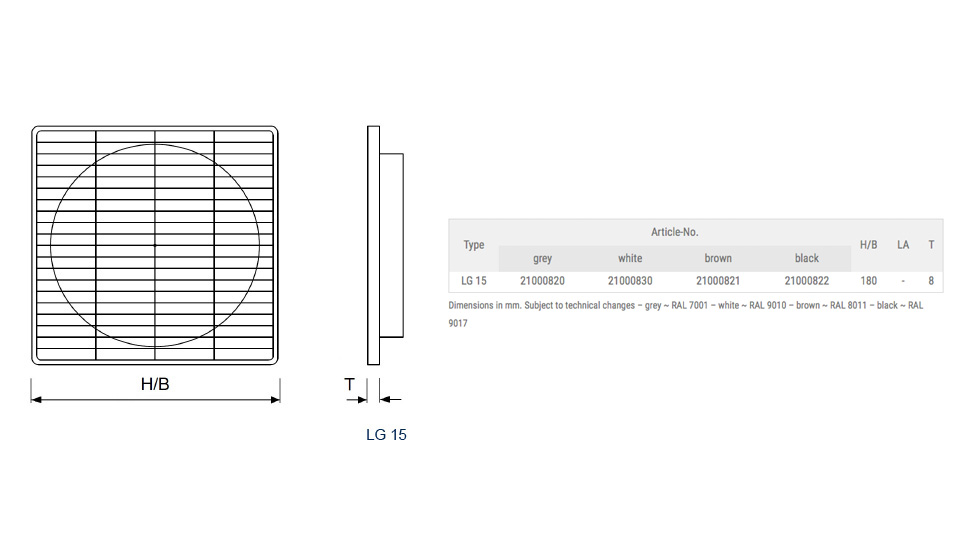

- The air grille type LG 15 is manufactured on the backside with plane end tees (150mm) in a conical form for fitting into pipes
- Plastic Grille packed in polybag (without fastening parts)

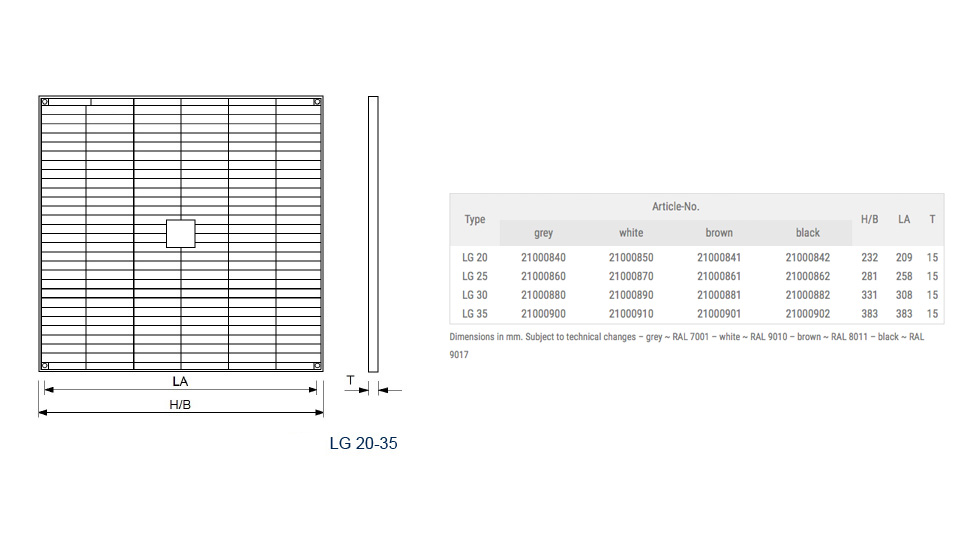

| Type | Article-No. | H/B | LA | T | Free cross-section (cm²) |
|---|---|---|---|---|---|
| white | |||||
| LG 15 | 21000830 | 180 | – | 8 | 170 |
| LG 20 | 21000850 | 232 | 209 | 15 | 485 |
| LG 25 | 21000870 | 281 | 258 | 15 | 710 |
| LG 30 | 21000890 | 331 | 308 | 15 | 986 |
| LG 35 | 21000910 | 383 | 383 | 15 | 1320 |
Dimensions in mm. Subject to technical changes – white ~ RAL 9010
