Type WS

  • A custom-made application, an especially designed and developed specialized patented
    plastic that guarantees the visual appearance of metal for the louvre
  • Gives the advantage of a lighter construction and reduced costs, additionally the
    product is resistant to humidity and ammonia as opposed to traditional metal
    productions
  • This specialized plastic is, like all our quality products weather-proof (UVstabilized)
    and hence suitable for exterior applications
  • Weather resistant louvre for internal and external use
  • Suitable for an operating temperature range of -30° C to +60° C
  • Manufactured of high standard ecologically friendly plastic
  • Fixed rain-proofed blades
  • Specific design guarantees high durability
  • Number and in-between spaces of the blades vary according to the size of the louvre
  • The entry of small animals are prevented via a galvanized steel wire grid mounted on
    the backside (13 x 13 mm)
  • The louvre will be immersed into the masonry or the facade cladding
  • Available in various square and rectangular standard sizes
  • Custom-made production is available for individual pieces or serial production

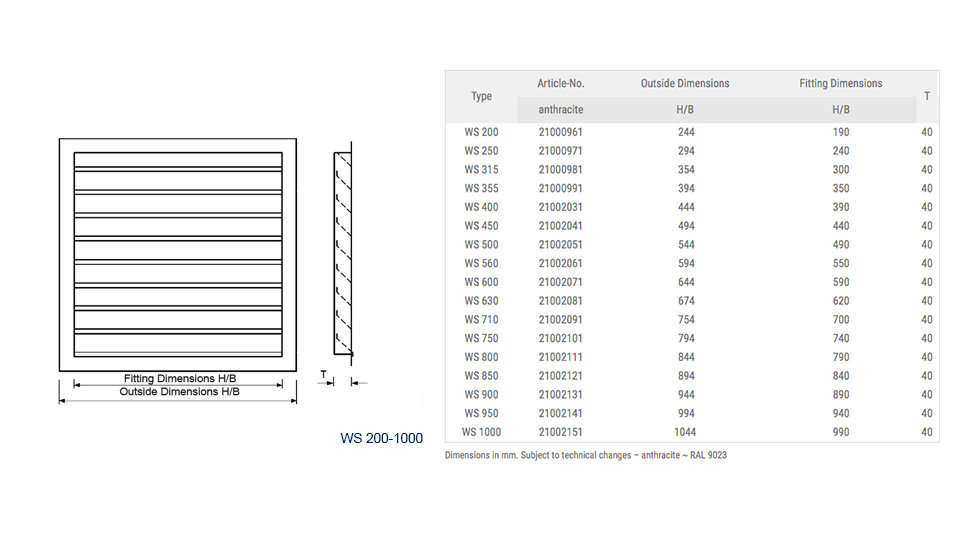

Square Design

Product picsproduktbildDrawingszeichnung

Type Article-No. Outside Dimensions Fitting Dimensions T
anthracite H/B H/B
WS 200 21000961  244 190 40
WS 250 21000971  294 240 40
WS 315 21000981  354 300 40
WS 355 21000991  394 350 40
WS 400 21002031  444 390 40
WS 450 21002041  494 440 40
WS 500 21002051  544 490 40
WS 560 21002061  594 550 40
WS 600 21002071  644 590 40
WS 630 21002081  674 620 40
WS 710 21002091  754 700 40
WS 750 21002101  794 740 40
WS 800 21002111  844 790 40
WS 850 21002121  894 840 40
WS 900 21002131  944 890 40
WS 950 21002141  994 940 40
WS 1000 21002151 1044 990 40

Dimensions in mm. Subject to technical changes – anthracite ~ RAL 9023

Rectangular Design

Product picsproduktbildDrawingszeichnung



Type Article-No. Canal
Dimension
Outside Dimensions Fitting Dimensions Outside Dimensions Fitting Dimensions T
anthracite H H B B
WS 40/20 21002161 400×200 244 190 444 390 40
WS 50/25 21002171 500×250 294 240 544 490 40
WS 50/30 21002181 500×300 344 290 544 490 40
WS 60/30 21002191 600×300 344 290 644 590 40
WS 60/35 21002201 600×350 394 340 644 590 40
WS 70/40 21002211 700×400 444 390 744 690 40
WS 80/50 21002221 800×500 544 490 844 790 40
WS100/50 21002231 1000×500 544 490 1044 990 40

Dimensions in mm. Subject to technical changes – anthracite ~ RAL 9023
