Profiles and louvre blades for for Ventilation Systems

Components

Profiles and louvre blades

  • Plastic louvre blades and profiles
  • Streamline shaped and durable
  • Standard size is 4000 mm, each louvre blade or profile can be cut on site
  • On request also available larger than 4000 mm
  • Outdoor weathering resistant (UV-stabilized)
  • Suitable for an operating temperature range of -30° C to +60° C
  • Specific design guarantees high durability
  • Manufactured of high standard ecologically friendly plastic

Louvre BladeproduktbildCounterbal. L.B.zeichnungInsulated L.B.zeichnungDrop-shaped L.B.zeichnung

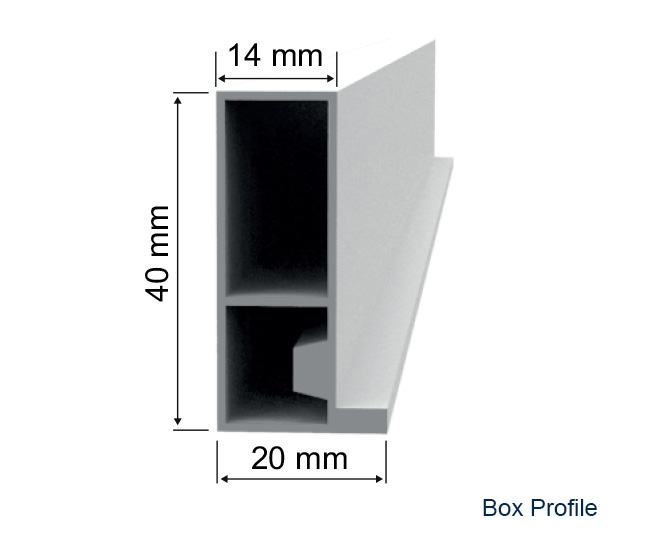

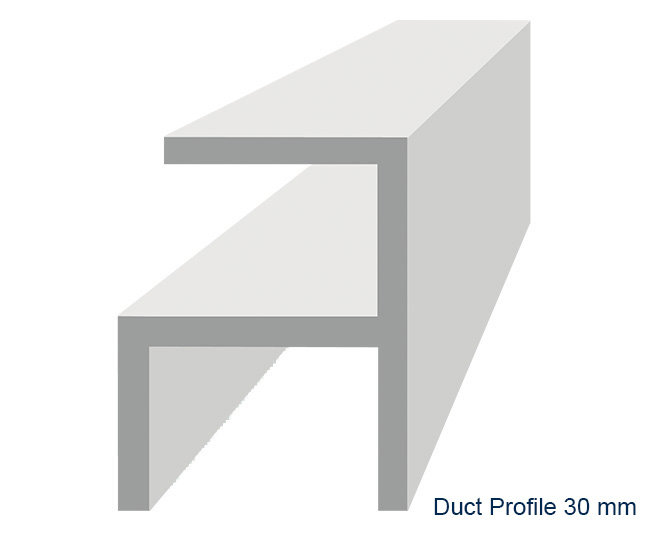

Angle ProfilezeichnungBox ProfilezeichnungProfile with FlangezeichnungDuct Profilezeichnung

H-ProfilezeichnungF-ProfilezeichnungU-Profilezeichnung

Type Article-No. B
grey light grey
40 Louvre Blade 11100003 11100004 40
62 Louvre Blade 11100015 11100016 62
85 Louvre Blade 11100021 11100022 85
88 Louvre Blade 11100027 11100028 88
92 Louvre Blade 11100035 11100036 92
103 Counterbalanced L. Blade 11100045 103
115 Counterbalanced L. Blade 11100047 115
120 Counterbalanced L. Blade 11100043 120
Insulated Louvre Blade 11100041 120
Drop-shaped Louvre Blade 11100260 11100261 25
Angle Profile 11200002
Box Profile 11200012
Box Profile with Flange 11200014
Duct Profile 30 mm 11200018
Duct Profile 25 mm 11200010
H-Profile 25 mm 11200004
F-Profile 25 mm 11200006
U-Profile 25 mm 11200008

Dimensions in mm. Subject to technical changes – white ~ RAL 9010 – light grey ~ RAL 7035 – grey ~ RAL 7001
