Ventilation Accessories
Everything regarding sound insulation, filters, and installation aids
getAir | Ventilation accessories at a glance

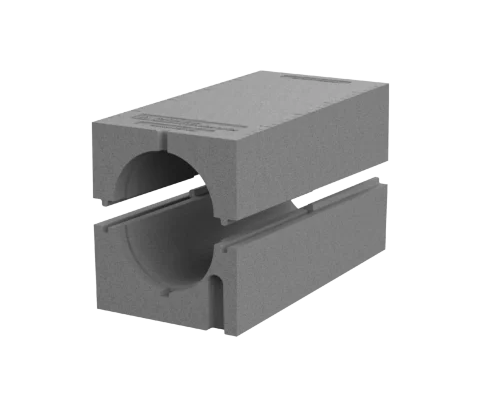

New Build Mounting Block
The mounting block is an indispensable aid for energy-efficient construction in new builds. The two-part block consists of the flame-retardant insulation material Neopor®. This cuboid already features a 162 mm opening and a 3° slope for condensate drainage. Furthermore, it includes recesses for cable routing to allow for flexible system installation. During the shell construction phase, it is simply walled in at the previously defined height. Subsequent core drilling is therefore unnecessary.

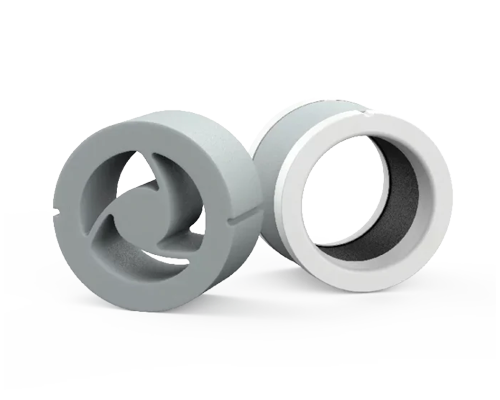

Sound Insulation Elements
With the sound insulation elements, the sound pressure level of the already acoustically optimised getAir® systems can be further reduced by up to 20%. The air performance remains 100% intact. This is unique on the market. The volume flow and sound insulation are variably adjustable during installation thanks to the 3K sound insulation element. The sound insulation element consists of a ring with 3 chambers. Each chamber can be opened separately to respond flexibly to volume flow and sound requirements. The element is 80 mm thick and can be shortened as required, depending on the wall thickness.

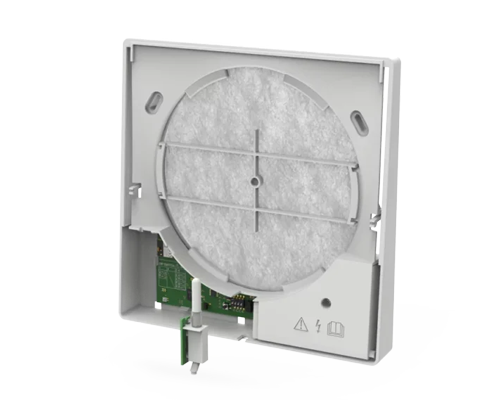

Sensors
The precise sensors record humidity, temperature, and air pressure. The sensor in the ComfortControl and BasicControl units can also record air quality. This allows the fans to be regulated up or down fully automatically depending on the state of the indoor air. It is also possible to switch between “Ventilation” mode (fan rotates in one direction) and “Heat Recovery” mode (fan rotates alternately in two directions). In the event of high air pressure, the fans control themselves completely independently to compensate for high pressure differences. In addition to the indoor humidity and temperature values, the air quality in the room can also be read very clearly via the app. Air quality is significantly influenced by the concentration of volatile organic compounds, so-called VOCs.
Stainless Steel External Hoods
The robust external hoods made of high-quality stainless steel are available in brushed stainless steel, White (RAL 9016), and Anthracite (RAL 7016). The minimum wall thickness is 230 mm. Thanks to the extended drip edge, soiling of the facade is avoided.

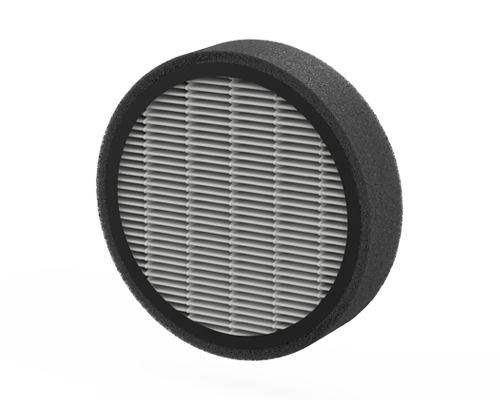

Fine Dust Filters
The fine dust filter (ISO 16890: ePM 2.5) ensures the highest possible health protection in the home. Coarse dust, pollen, and the smallest fine dust particles can be filtered out without difficulty. Due to its multi-fold design, the multi-membrane filter unit achieves the largest possible surface area to bind floating particles. Despite the close-meshed fibre network, the volume flow is largely maintained. Dust and dirt can be easily vacuumed off.

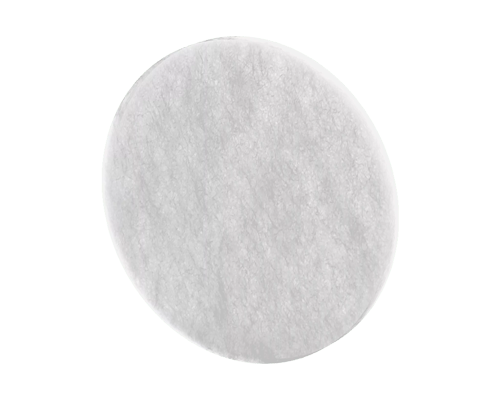

Dust and Pollen Filters
The filter significantly reduces pollen and dust levels in the house. It consists of fine-mesh non-woven fabric and has a separation efficiency of 86% (ISO coarse 60). The filter exhibits high separation performance with a comparatively low pressure loss. Regular cleaning of the filter is very easy: the unit can be removed from the inner cover in one simple step and can be vacuumed with a conventional vacuum cleaner.
