Highly stable connections using Bluetooth Mesh
The ComfortControl Pro BT and EcoControl Pro BT use Bluetooth Mesh to communicate. It is a very stable communication standard that can be used instead of data cables. This makes both control units ideal, when combined with a SmartFan® Pro BT, for energy renovation and other refurbishments. The system is very quick and comparatively easy to retrofit.
Bluetooth Mesh will revolutionise home ventilation
Conventional, single-direction wireless solutions operate on a master-slave model – from control unit to fan. Bluetooth Mesh is different: this network solution can connect all the fans with one another in a vast network so they can all communicate with one another. The system's long reach and extreme stability are particularly impressive. Bluetooth Mesh is straightforward to configure and manage. No central hub is required: you can add or remove devices without restricting the entire network. It's easier to control the network, as it can be operated from any one fan. No gateway is needed to transmit data between devices. These features make Bluetooth Mesh networks quick and smooth to implement and operate anywhere.
Achieve maximum comfort in no time

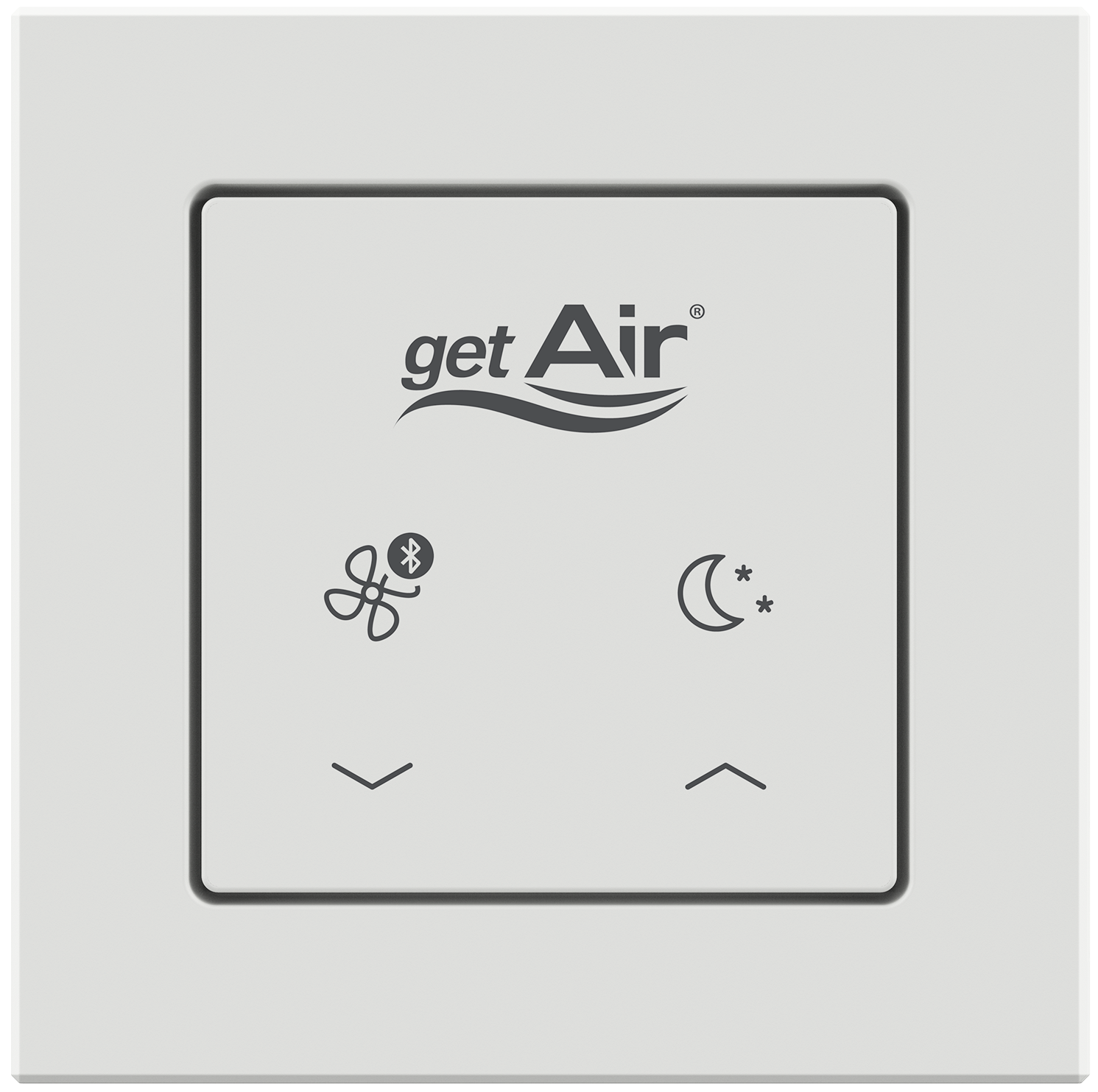

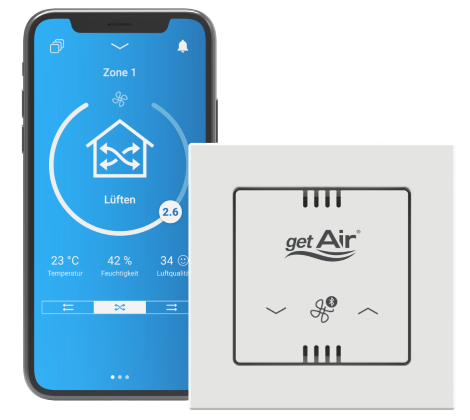

The innovative ComfortControl Pro BT wireless control unit can be used in conjunction with the getAir® app on your phone to ensure a comfortable, feel-good climate at all times. Convenient to control via the app or directly via the wall-mounted control unit. Use the many possible individual settings or simply achieve maximum comfort at the touch of a button, fully automated and controlled using sensors.
Fine sensors record humidity, temperature, air quality (VOCs) and air pressure. The fans are then turned up or down fully automatically based on the state of the ambient air. Users can switch between "quick ventilation" mode (fan turns in one direction) and "heat recovery" mode (fan alternates between two directions). At high air pressure, the fans control themselves fully independently to even out any significant differences in pressure. The app allows users to view the indoor air quality at a glance via the humidity and temperature measurements. Air quality is greatly affected by pollution from volatile organic compounds, also known as VOCs.
| ComfortControl Pro BT |
 EcoControl Pro BT |
|
|---|---|---|
| Max. no. zones | 1 | 1 |
| Max. Mesh participants | 12 | 12 |
| Max. range1) | 100 m | 100 m |
| Performance levels | 4 (fully adjustable in 0.1 increments2)) | 4 |
| No. ventilation modes | 6 | 3 |
| Ventilate | ✓ | ✓ |
| Cross ventilate | ✓ | ✓ |
| Sleep mode | ✓2) | ✓ |
| Automatic mode | ✓2) | - |
| Timer mode | ✓2) | - |
| Power mode | ✓2) | - |
| Connectivity | WiFi (2,4 GHz) | - |
| Sensors in control unit | temperature, humidity, air quality | - |
| Plug-in sensor support | ✓ | ✓ |
| App and voice control2) | ✓ | - |
1) Installed in a free field (within buildings, deviations are possible)
2) In conjunction with the app
