SmartFan® Steuerung



SmartFan® control unit

You're an individual - and so is your ventilation!



Request your offer now

Image Wave

Zone-by-Zone Ventilation

Smart controls in line with your needs.
React concurrently to differing ventilation situations.


Zonen Beispiele
1
2
3

TOUCH control unit

Test our intuitive control unit now!


Touch Steuerung

getAir’s innovative TOUCH control unit is unique. A touch of your finger is all you need to select the fan speed for selected zones, for instance all bedrooms. The six pre-defined operating modes can be individually selected for each zone, in line with your personal needs.

Select a mode on the control unit and find out more.

Eco mode

Eco mode

The system changes the direction of the air in pairs in a 70-second interval so that the heat recovery is ensured. The heat recovery rate is up to 91%.

Full-blast mode

Full-blast mode

In order to achieve a fast and draft-free ventilation of the apartment, in the case of short-term increased humidity or CO2 concentration, the system runs in just one direction.

Sleep mode

Sleep mode

Enables noisless failing asleep. The fan turns off for an hour and then continues to run automatically in the last set mode. So you can sleep comfortably, while the SmartFan® provides sufficient oxygen.

Automatic mode

Automatic mode

Automatic mode is available when a fan unit is equipped with a sensor. Using this mode, the system automatically adjusts to a room‘s temperature and humidity levels.

Party mode

Party mode

In party mode the residential unit is aerated with maximum power. As a result, the increased demand for fresh air is optimally covered by the increased number of people.

Power mode

Power mode

In power mode, the system runs for at least 15 minutes and up to 5 hours at top fan speed in heat recovery mode.

Automatic Mode

Sensor technology for perfect adjustment


Automatik AUS Automatik AN

All fans in SmartFan® systems are equipped with a socket for a sensor stick. Purchased separately, the sensor stick just needs to be plugged in. All SmartFan® models can thus be upgraded to a sensor-driven SmartFan® S. Just one sensor stick is needed for each ventilation zone.

The TOUCH control unit automatically recognises when a sensor stick has been inserted, showing the symbol “Auto” in the display panel. Moreover, the sensor’s LED starts blinking. Once connected, the sensor measures the inside and outside temperature and humidity level, adjusting the fan speed for an optimal indoor climate. When required, the automatic mode can be switched off via the control panel.

Just press the button to activate
Automatic-Mode.

Installation Bus

Individual or serial connection: that’s up to you!


Haus
Stern Leitung

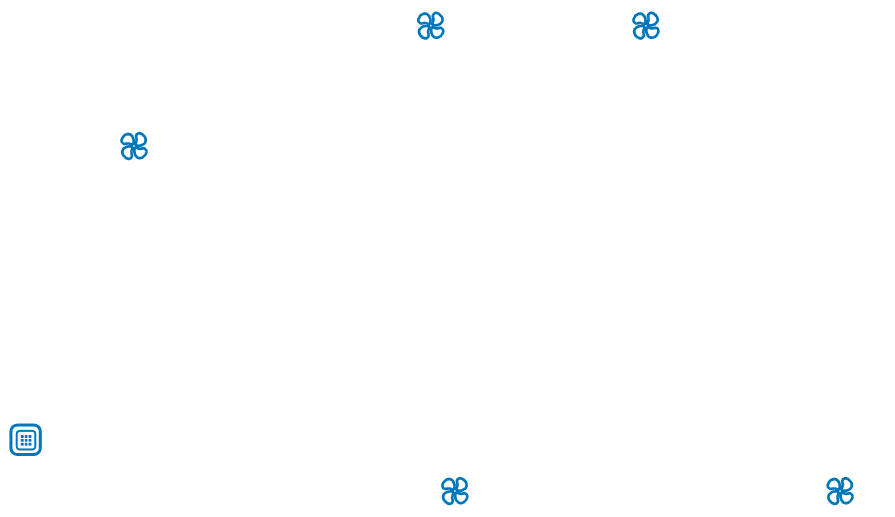

Reihe Leitung

A BUS system connects all SmartFan® systems either serially or in a star arrangement. The control unit can be installed anywhere within a home’s electrical system. BUS signals can travel a maximum distance of 1000 Meter. We recommend 4-core LiYY cables.

For more information on SmartFan installation, please refer to the respective “Installation and Operating Instructions”.

Download the Installation Instructions

A BUS system connects all SmartFan® systems either serially or in a star arrangement. The control unit can be installed anywhere within a home’s electrical system. BUS signals can travel a maximum distance of 1000 Meter. We recommend 4-core LiYY cables.

For more information on SmartFan installation, please refer to the respective “Installation and Operating Instructions”.

Download the Installation Instructions

LED control unit

Fresh air at the press of a button


Touch Steuerung

getAir’s LED control unit has just four buttons. The two operating modes – “Eco” (with heat recovery) or “Full-blast” – can run at four different speeds. A further display fields informs users of the need to change a filter.

Click on one of the control unit’s buttons for more information.

Increase ventilation

Increase ventilation

Control the ventilation comfortably by pushing the button and increase the intensity.

Eco-Mode

Eco-Mode

The system changes the direction of the air in pairs in a 70-second interval so that the heat recovery is ensured. The heat recovery rate is up to 91%.

Aeration-Mode

Aeration-Mode

In order to achieve a fast and draft-free ventilation of the apartment, in the case of short-term increased humidity or CO2 concentration, there is only one airflow direction.

Reduce ventilation

Reduce ventilation

Control the ventilation comfortably by pushing the button and reduce the intensity.

Easy to install

Easy change due to innovative plug-in system!


Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide
Montage Slide

getAir’s control units are designed as modules, thereby increasing flexibility. The frame and control screen can be inserted into the base element without tools, allowing users to easily upgrade from an LED control unit to a multifunctional TOUCH control unit – in line with your needs.
